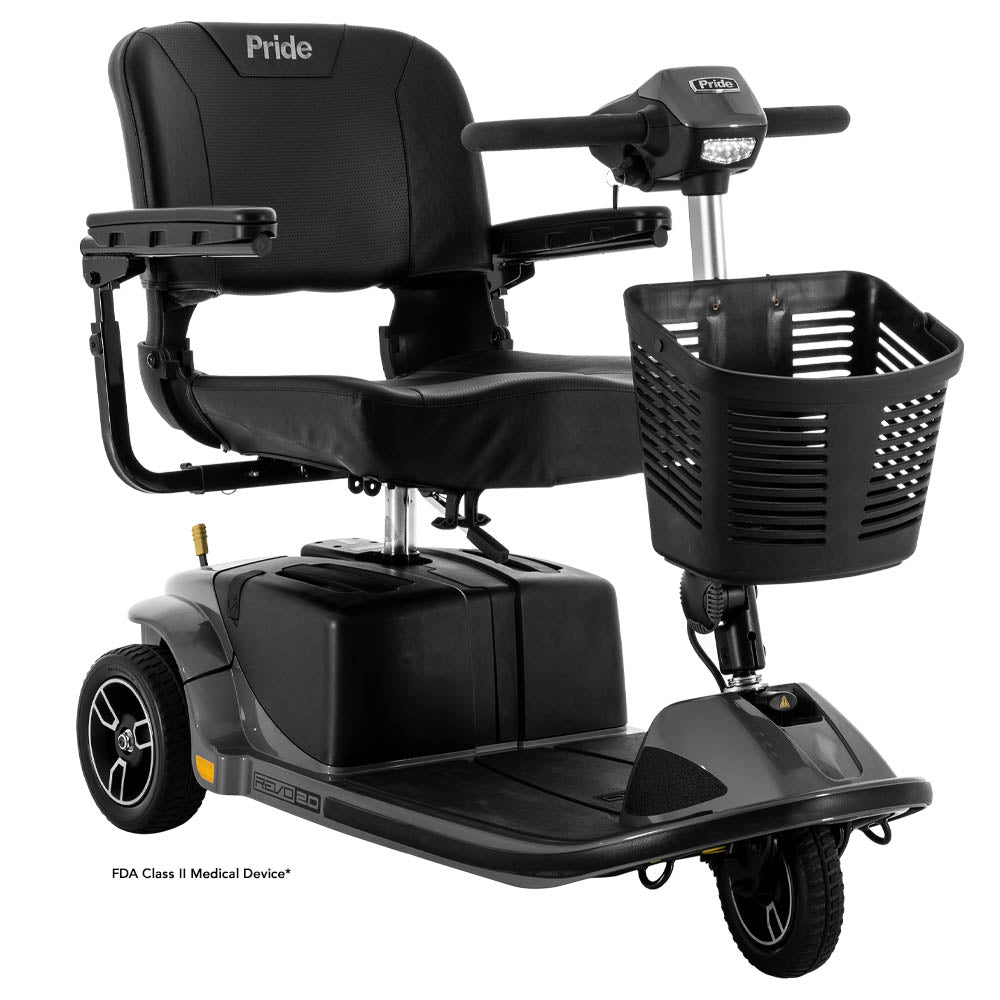

Revo™ 2.0 3 Wheel (S66) *FDA Class II Medical Device*
UOM - 1 Per Each
Features
Experience the Revo 2.0, a new class of scooter that combines an array of features into one great package. Tough and built to last, the Revo 2.0 offers rugged dependability you expect from luxury mid-size scooters. Comfort-Trac Suspension (CTS) ensures a smooth and comfortable ride over varied terrain. Experience convenient, feather-touch disassembly for portability that is comparable to our Travel Mobility line. Enjoy standard under seat storage and speeds up to 5.2 mph. Ride on with the Revo 2.0!
- Comfort-Trac front and rear suspension
- Durable and stylish rear bumper
- Easily accessible tie down points (for transport of unoccupied scooter)
- Easily adjustable tiller
- Easily charge the batteries on or off the unit
- Pride’s exclusive black, flat-free, non-scuffing tires
- Seat designed for extreme comfort
- Standard front basket
- Standard under seat storage
- Ultra heavy-duty drivetrain with 70 amp controller
- User-friendly console
- USB mobile device charging port
* Pride FDA Class II Medical Devices are designed to aid individuals with mobility impairments.*
Specifications
| Model | Revo 2.0 |
|---|---|
| Model Number | 3W: S66, 4W: S67 |
| Weight Capacity | 400 lbs. |
| Maximum Speed* | Up to 5.2 mph |
| Ground Clearance | 3W: 3.25” at side deck, 4W: 3.5” at side deck |
| Turning Radius** | 3W: 40”, 4W: 52” |
| Overall Length** | 3W: 46”, 4W: 47” |
| Overall Width | 20.75” |
| Seat-to-Ground Height | 22”-23.5” |
| Seat-to-Deck Height | 15”-16.5” |
| Front Tires | 3W: 3” x 8”, 4W: 3” x 9” |
| Rear Tires | 3” x 9” |
| Suspension Type | Front and rear (CTS) |
| Range Per Charge* | 3W: Up to 17.4 miles (200 lbs.), Up to 12.8 miles (400 lbs.) 4W: Up to 17.8 miles (200 lbs.), Up to 14.8 miles (400 lbs.) |
| Total Weight with Batteries** | 3W: 170 lbs.; 4W: 182 lbs. |
| Heaviest Piece When Disassembled** | 3W: 48 lbs. (rear section), 4W: 57 lbs. (front section) |
| Standard Seating | Type: Compact, foldable Dimensions: 20” width, 18” depth, 27.25 lbs. weight |
| Drive System | Rear-wheel drive sealed transaxle with 24-volt DC motor |
| Braking System | Regenerative and electromechanical |
| Battery Requirements | Size: (2) U1 batteries; 25 lbs. each |
| Battery Charger | 3.5-amp, off-board |
| Warranty | Frame: Lifetime limited Drivetrain: 2-year limited Electronics: 2-year limited Battery: 6-months |
The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice.
*Speed & range vary with user weight, terrain type, battery charge, battery condition, and tire pressure.
**Due to manufacturing tolerances and continual product improvement, this specification is subject to a variance of + or - 3%.
