- 300 lb. weight capacity
- Speeds up to 3.7 mph
- Compact, 25.5” Turning radius

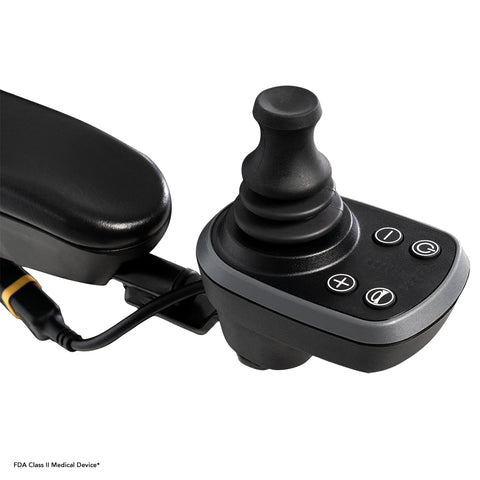

- Intuitive controller and easy to operate
- Range up to 8.6 miles
- Compact, foldable black vinyl seat with 5-point swivel seat with latch release available in 18” x 17” or 20” x 18” and 60” lap belt Compact turning radius
- Large footplate for added comfort

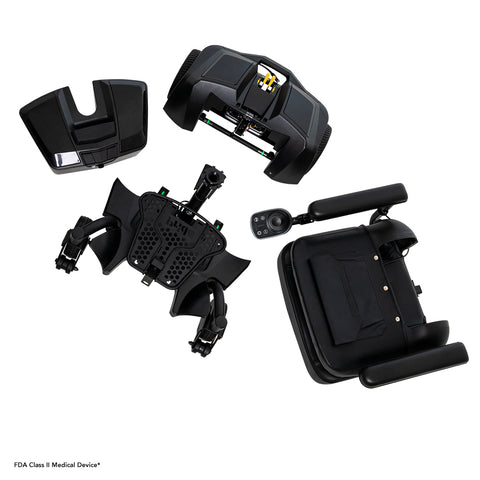

- One hand feather-touch disassembly for quick transport and storage
- The heaviest piece is only 36 lbs.
* Pride FDA Class II Medical Devices are designed to aid individuals with mobility impairments.*
*Note: Transport of this item on commercial aircraft is subject to federal regulations and airline policy. Please consult your airline prior to your flight to ensure your iRIDE® and its lithium-ion batteries are permitted
Turning Radius1 25.5"
Width1 22.5"
Length1,2 28.5" without front rigging
33" with front rigging
Maximum Speed3 up to 3.7 mph
Ground Clearance1 1.8" at motor, 1.7" at anti-tip, 2.7" at foot bracket
Front Wheels 6" solid casters
Drive Wheels 9" solid
Rear Wheels 3" solid anti-tips
Standard Electronics 40 amp, PG GC3 (non-programmable)
Battery Size (2 required) 18 Ah, 12 V, deep-cycle
Standard Battery Charger Off-board, 2 amp
Per-Charge Range3,6 Up to 8.6 miles
Battery Weight5 14 lbs. each
Weight of Heaviest Piece4 36 lbs. (rear)
Standard Seat Weight 30 lbs.
Standard Seat Size Compact, Foldable (18"x17")
Medicare Code Coverage Group 2 K0821 Portable
Warranty 5-year limited on frame;
13-month limited on electronics;
13-month limited on drive motors
Notes:
1 Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of + or - 3 %. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections.
2 Without front riggings.
3 Varies with user weight, terrain, battery type, battery condition and tire pressure.
4 Does not include seat or battery weights.
5 Battery weight may vary based on manufacturer.
6 Tested in accordance with ANSI/RESNA, WC Vol. 2, Section 4 and ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Testing conducted at maximum weight capacities. This specification can be subject to a variance of +10%, -5%.
The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice.
