• Choice of 6 colors
• 18" x 17" or 20"x18", 5-point swivel seat with latch release
• Increased 300 lb. weight capacity
• Faster speed - up to 3.7 mph
• Larger, 18 amp batteries
• Improved agility - longer wheel base; wider stance; compact turning radius 25.4"
• Dual swing-away, under seat storage bins
• Larger, height & width adjustable armrests
• Larger footplate

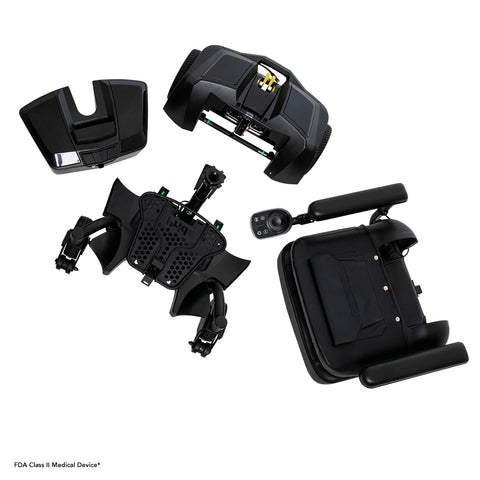

• One hand feather-touch disassembly
• 60" lap belt

* Pride FDA Class II Medical Devices are designed to aid individuals with mobility impairments.*

• Model Go Chair
• Weight Capacity 300 lbs.
• Turning Radius1 25.5"
• Width1 22.5"
• Length1,2 28.5" without front rigging
• 33" with front rigging
• Maximum Speed3 up to 3.7 mph
• Ground Clearance1 1.8" at motor, 1.7" at anti-tip, 2.7" at foot bracket
• Front Wheels 6" solid casters
• Drive Wheels 9" solid
• Rear Wheels 3" solid anti-tips
• Standard Electronics 40 amp, PG GC3 (non-programmable)
• Battery Size (2 required) 18 Ah, 12 V, deep-cycle
• Standard Battery Charger Off-board, 2 amp
• Per-Charge Range3,6 Up to 8.7 miles (std), 10.9 miles with extended range
• Battery Weight5 14 lbs. each
• Weight of Heaviest Piece4 36 lbs. (rear)
• Standard Seat Weight 30 lbs.
• Standard Seat Size Compact, Foldable (18"x17")
• Medicare Code Coverage K0899 Power Mobility Device, not coded by DME PDAC or does not meet criteria
• Warranty 5-year limited on frame;
• 13-month limited on electronics;
• 13-month limited on drive motors

Notes:
1 Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of + or - 3 %. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections.
2 Without front riggings.
3 Varies with user weight, terrain, battery type, battery condition and tire pressure.
4 Does not include seat or battery weights.
5 Battery weight may vary based on manufacturer.
6 Tested in accordance with ANSI/RESNA, WC Vol. 2, Section 4 and ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Testing conducted at maximum weight capacities. This specification can be subject to a variance of +10%, -5%.
The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice.
