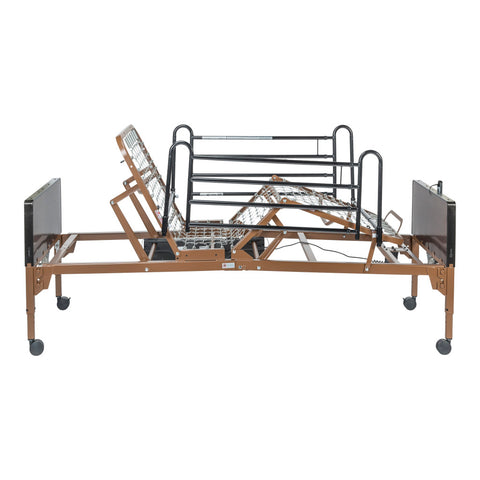

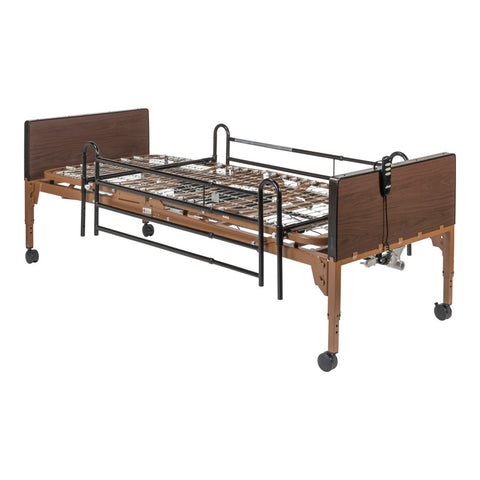

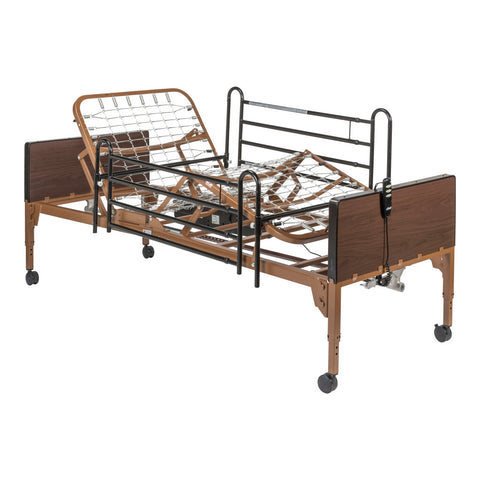

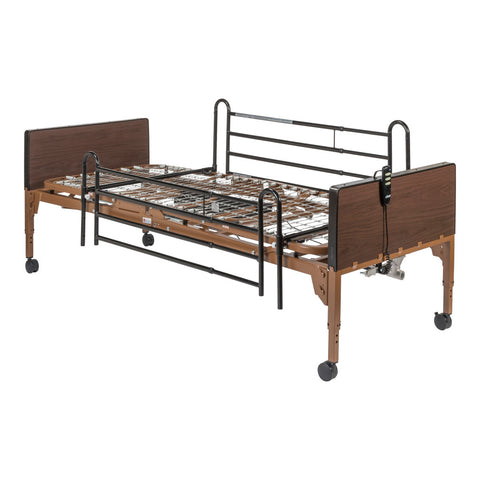

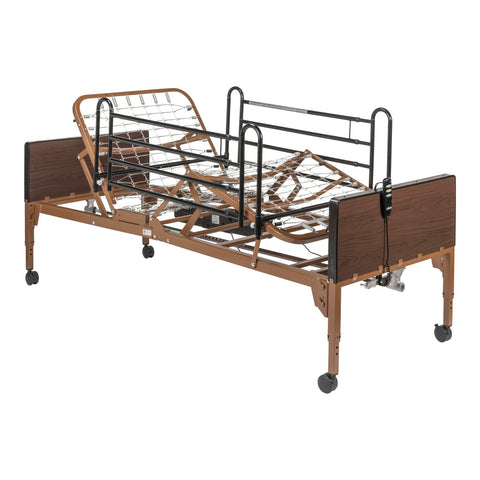

Drive Medical Delta® Ultra- Light 1000, Semi-Electric Bed with Full Rails #15030BV-FR

Features

• The Delta 1000 is truly universal because the bed frame can be used with Drive's and most other manufacturers' bed ends, old and new

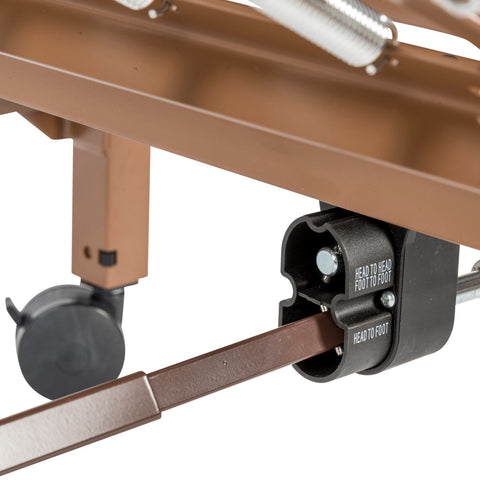

• The transition box mounted on the foot section is key to interchangeability (Figure A)
• The transition box allows you to change the rotation of the high/low shaft

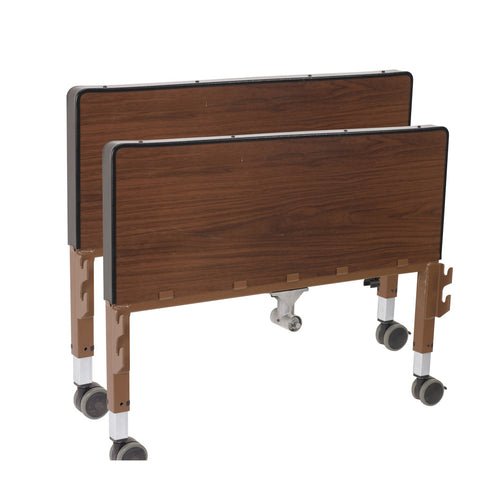

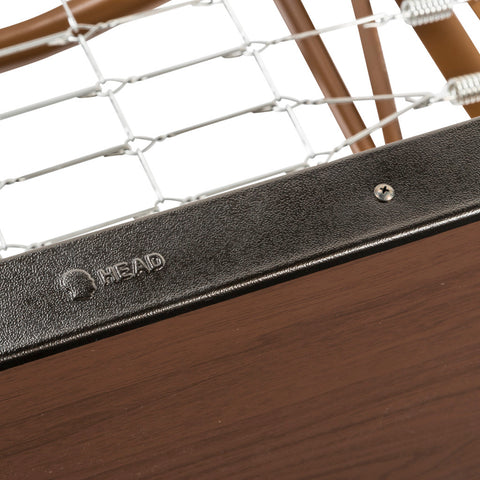

• Headboard is taller than footboard to better fit home decor (Figure B)
• The wood grain panels are break and scratch resistant
• Foot section weighs 50% less than conventional foot sections to make deliveries safe and easy
• Once installed, the high/low shaft will stay with the bed to eliminate loss or forgetting on future installations (Figure C)

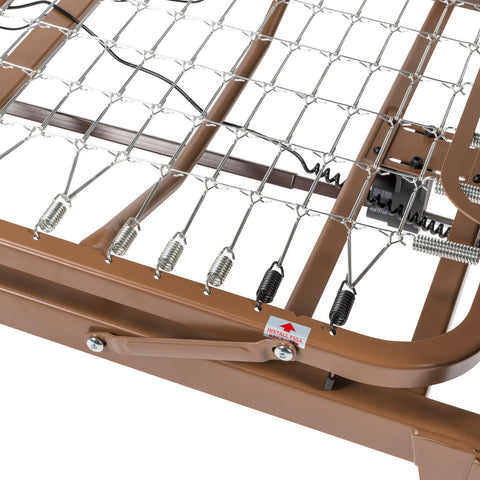

• Labels and color-coded springs assure accurate installation of side rails for patient safety (Figure D)

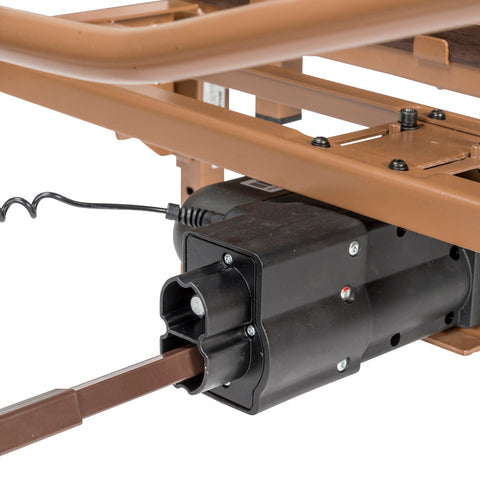

• Unique motor is completely self-contained to reduce weight and noise
• The motor assembly can be installed and removed with patient in bed
• Bed, side rails and mattress safety-tested by SGS, a nationally recognized testing facility
• Satisfies all applicable FDA entrapment guidelines
• The motor is UL approved
• In the event of a power failure, a 9 volt battery, located in the motor, can lower the head and foot sections nine times
• No crank needed

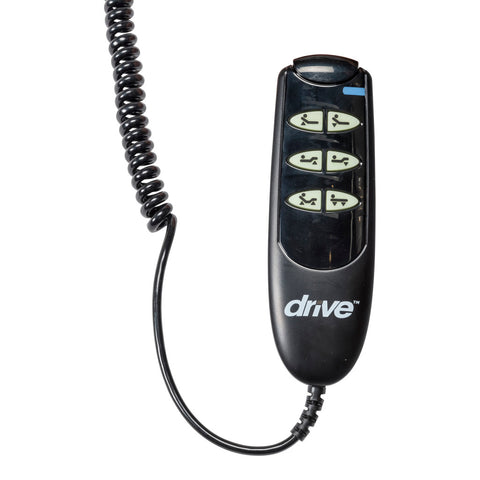

• New and improved hand pendant has large, easy-to-use controls (Figure E)
• Bed ships in two cartons
• Channel frame construction provides superior strength and reduced weight
• Zinc-coated spring deck
• Extension kit available (model #15030EXTKIT) extends length from 80" to 84"
• Patent Pending
• Weight Capacity 450 lbs


Specifications

• Color : Brown
• Material : Steel
• Warranty : (Original Purchaser) 5 Years on Motor and Hand Control, Limited Lifetime on Welds and Frame, 1 Year on All Other Parts and Components
• Assembly : Basic Assembly Required
• Installation : No Installation Required
• Latex Free : Yes
• Batteries : 1 - 9V
• Bed Height (Max) : 19.5"
• Bed Height (Min) : 12"
• Bed Height w/ Casters (Max) : 22.5"
• Bed Height w/ Casters (Min) : 15"
