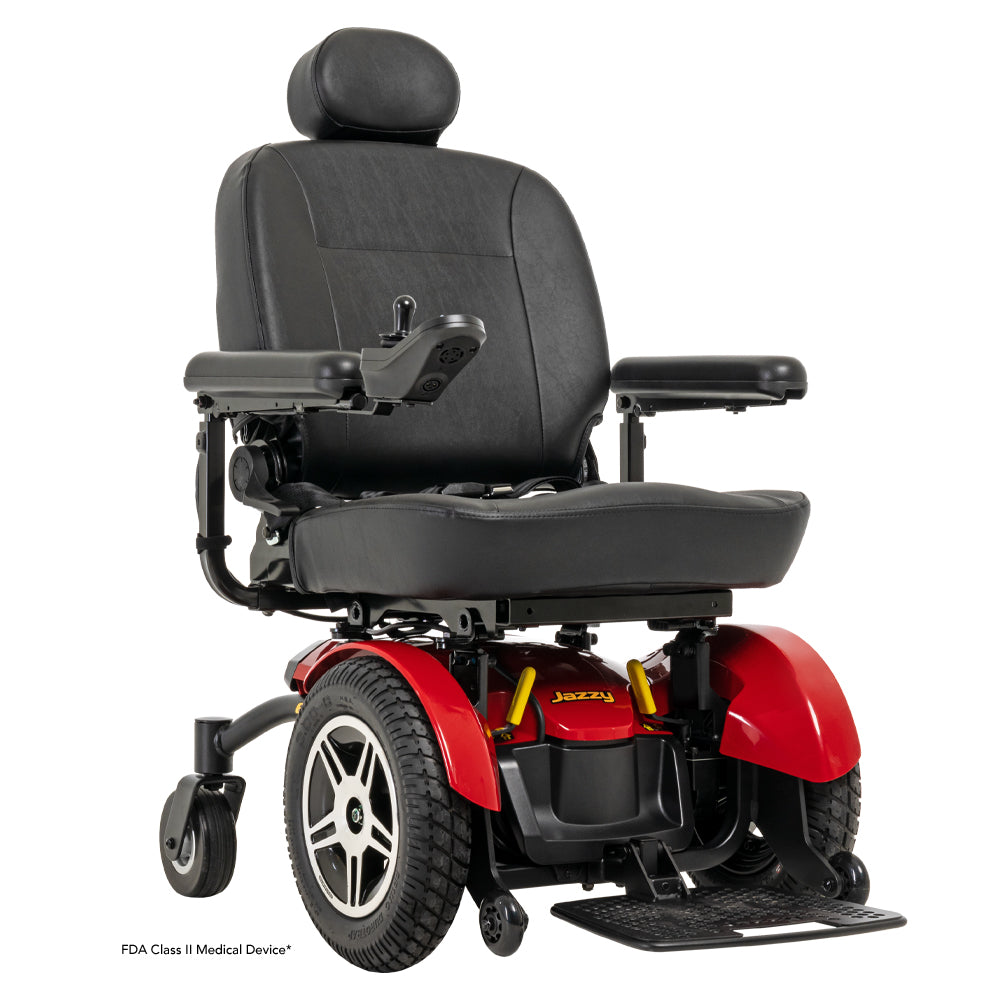

The Jazzy® Elite HD features two-motor, front-wheel drive technology and heavy-duty construction.
The Jazzy Elite HD features 14” drive wheels for enhanced outdoor performance combined with a front-wheel drive design to provide tight turns for optimal indoor maneuverability in small spaces.
Large front wheels add extra absorption for superb climbing capabilities and combine with front antitip wheels for handling various terrains with ease.
- Enhanced 450 lbs. weight capacity
- Front-wheel drive design for excellent maneuverability
- 14" knobby tires and optimum weight distribution provide superior traction
- Larger foot platform
- 60 amp controller
- 5-year limited on frame; 13- month limited on electronics; 13-month limited on drive motors; 13-month limited on batteries
* Pride FDA Class II Medical Devices are designed to aid individuals with mobility impairments.*
- Model Jazzy Elite HD
- Weight Capacity 450 lbs.5
- Turning Radius1 24"
- Width1 24.25"
- Length1,2 35.5"
- Maximum Speed3 Up to 4 mph
- Ground Clearance1 3"
- Front Wheels 3" solid anti-tips
- Drive Wheels 14" foam-filled
- Rear Wheels 6" Solid casters
- Drivetrain Two-motor, front-wheel drive
- Braking System Regenerative and electro-mechanical
- Suspension Type Limited
- High-Back Seat (max. size) 24"W x 24"D
- High-Back Seat-to-Floor Range 20" - 22"
- Synergy® Seating 24"W x 24"D
- Synergy® Seat-to-Floor Range 15.75" - 17.75"
- Standard Electronics 60A, Dynamic Shark
- Battery Size (2 required) 12 volt, NF-22
- Standard Battery Charger 5A, off-board
- Per-Charge Range3,7 Up to 12.5 miles
- Battery Weight6 37 lbs. each
- Weight of Heaviest Piece4 99 lbs.
- Standard Seat Weight 52 lbs. (high-back)
- Standard Seat Size 22"x20"-22"
- Medicare Code Coverage Group 2: Heavy Duty (K0824/K0825)
- Warranty 5-year limited on frame; 13- month limited on electronics; 13-month limited on drive motors; 13-month limited on batteries
Notes:
1 Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of + or - 3 %. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections.
2 Without front riggings.
3 Varies with user weight, terrain, battery type, battery condition and tire pressure.
4 Does not include seat or battery weights.
5 Maximum weight capacity is reduced to 400 lbs. (181 kg) on 18" deep seat configurations.
6 Battery weight may vary based on manufacturer.
7 Tested in accordance with ANSI/RESNA, WC Vol. 2, Section 4 and ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Testing conducted at maximum weight capacities. This specification can be subject to a variance of +10%, -5%.
The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice.
