Baja™ Wrangler® 2 (BA400) *FDA Class II Medical Device*

• Black vinyl, limited recline memory foam seat
• 7.7 Peak HP dual motors
• Storage Compartment

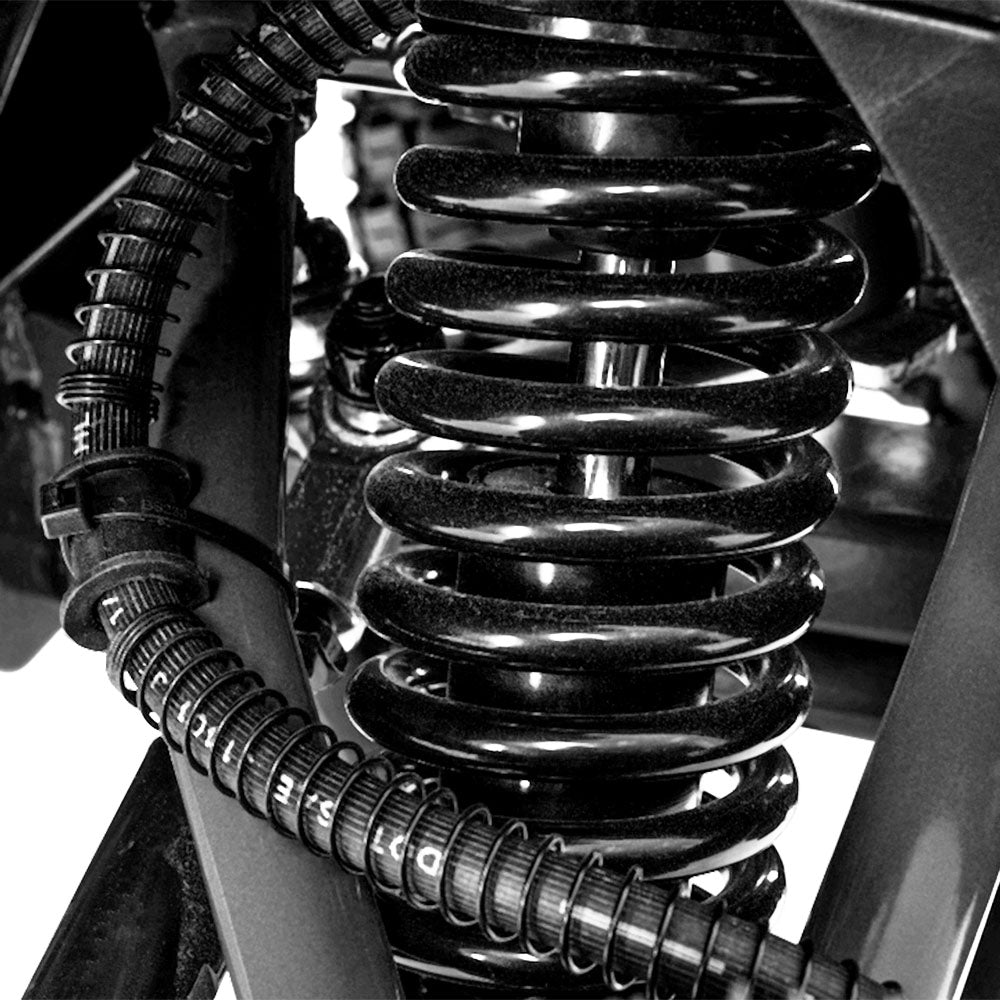

• CTS Suspension features industry-leading suspension for a much smoother ride
• Steering dampening system absorbs uncontrolled movements over rugged terrain designed to reduce fatigue by reducing the energy needed to control the handlebars

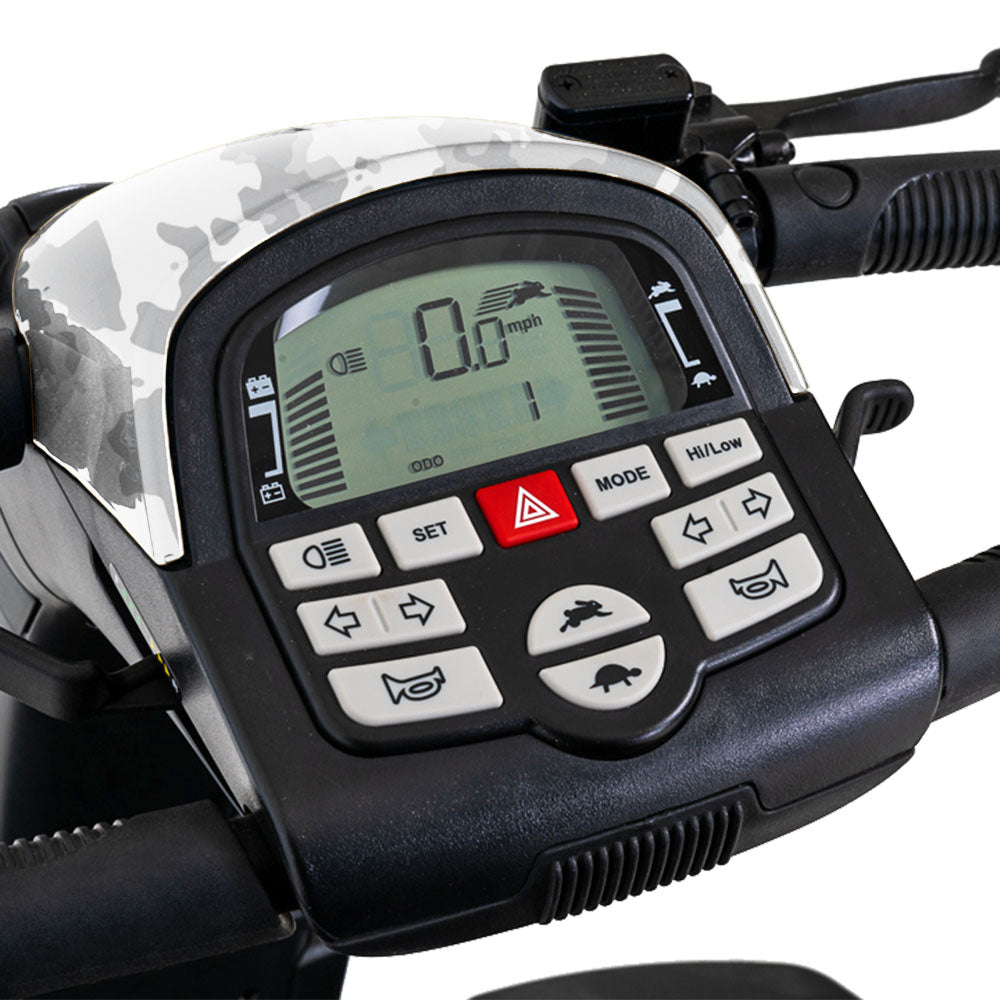

• User friendly LED console displays time, temperature, miles driven, and trips taken
• Adjustable delta tiller with ergonomic, wraparound handles
• USB charger built into the tiller for convenient charging of smart phones and portable devices
• Durable and stylish rear bumper
• Easy battery installation
• Dual-coated frame
• Easily accessible tie-down points (for transport of unoccupied scooter)
• Full LED lighting package includes headlights, hazard lights, and directional signals
• Rear backup sensor LED lights indicates when you are too close to an object when in reverse

**Non-Medical Device The intended use of this product is to provide assistance to persons with limited mobility who have the capacity to operate a motorized scooter.

• Model Baja™ Wrangler® 2
• Model Number BA400
• HCPCS Code NM – This product is not a medical device and is not intended to assist, treat, diagnose or alleviate any medical condition or disability
• Front Tires 14.5" tubeless pneumatic
• Rear Tires 14.5" tubeless pneumatic
• Maximum Speed* Up to 11 mph at 350 lbs., Up to 11.4 at 200 lbs.
• Ground Clearance 8.25” at mid-frame/td>
• Turning Radius** 94.75"
• Overall Length** 61.25"
• Overall Width 32.5"
• Seat-to-Ground Height Range 29” - 30.5”
• Seat Type Pillow-top, limited recline, 48.6 lbs., black vinyl, width 18.5", depth 16.5"
• Seat to Deck 20.5" - 22"
• Weight w/batteries** 75 Ah 370 lbs. 100Ah 395 lbs
• Battery Weight 2 (75 AH) 48 lbs. ea.
• 2 (100 AH) 60.5 lbs. ea.
• Battery Requirements (2) (75 AH)
• Optional (2) 100 AH
• Maximum Range Per Charge* Up to 18.6 miles at 350 lbs., Up to 22.6 miles at 200 lbs.
• Up to 24.2 miles at 350 lbs. (100 AH), Up to 29.4 miles at 200 lbs. (100 AH)
• Battery Charger Off-board, 8A
• Suspension Front & Rear (CTS Suspension)
• Maximum Weight Capacity 350 lbs.
• Standard Body Colors Desert Sand, True Blue
• Weight of Heaviest Piece** 219 lbs. (unit does not disassemble)
• Warranty Lifetime limited;
• 2-Year limited on Electronics;
• 2-Year limited on Drivetrain
• 6-months on battery

The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice.

*Speed & range vary with user weight, terrain type, battery charge, battery condition and tire pressure.

**Due to manufacturing tolerances and continued product improvement, this specification is subject to a variance of +/- 3%
